Large-backward fans we have built

The big, slow backward-curved wheel - high static from a constrained footprint, at a tip speed that keeps it quiet. Every card is a real dispatched build, with its verified duty point.

Get a quote

Read how the large-backward family is engineered  ·  See the whole gallery

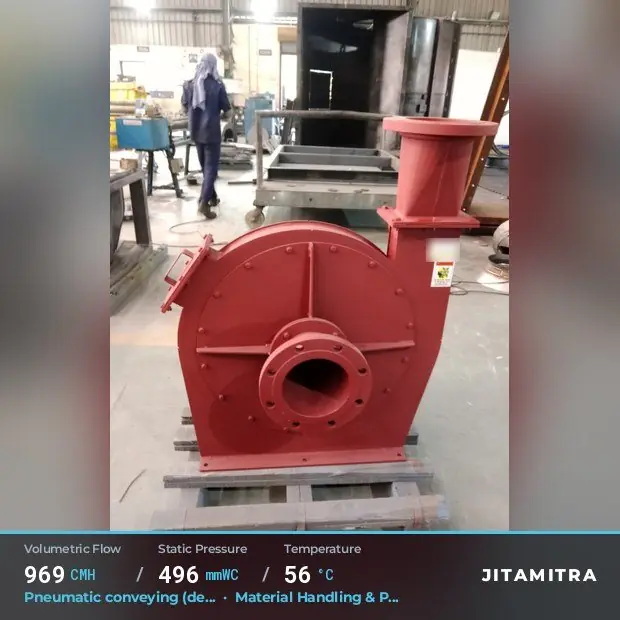

Jitamitra Large-Backward — real dispatched build
969CMH/496mmWC/56°C
Pneumatic conveying (dilute) · Foundry & Casting
Jitamitra Large-Backward — real dispatched build
1,600CMH/600mmWC/50°C
Corrosive gas exhaust · Chemicals & Petrochemicals
Jitamitra Large-Backward — real dispatched build
969CMH/496mmWC/56°C
Pneumatic conveying (dilute) · Foundry & Casting
Jitamitra Large-Backward — real dispatched build
Duty on request
Corrosive gas exhaust · Pharmaceuticals
Jitamitra Large-Backward — real dispatched build
Duty on request
Corrosive gas exhaust · Pharmaceuticals
Jitamitra Large-Backward — real dispatched build
2,268CMH/1,043mmWC/50°C
Combustion / process air blower · Iron & Steel / Metals
Jitamitra Large-Backward — real dispatched build
2,268CMH/1,043mmWC/50°C
Combustion / process air blower · Iron & Steel / Metals
Jitamitra Large-Backward — real dispatched build
1,400CMH/800mmWC/40°C
ATEX / paint-booth exhaust · Surface Coating & Plating
Jitamitra Large-Backward — real dispatched build
1,400CMH/800mmWC/40°C
ATEX / paint-booth exhaust · Surface Coating & Plating

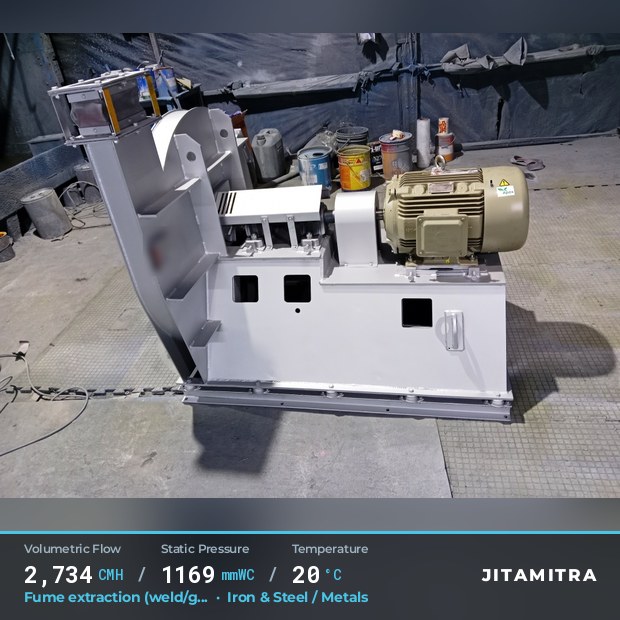

Jitamitra Large-Backward — real dispatched build
2,734CMH/1,169mmWC/20°C
Fume extraction (weld/grind/EAF) · Iron & Steel / Metals

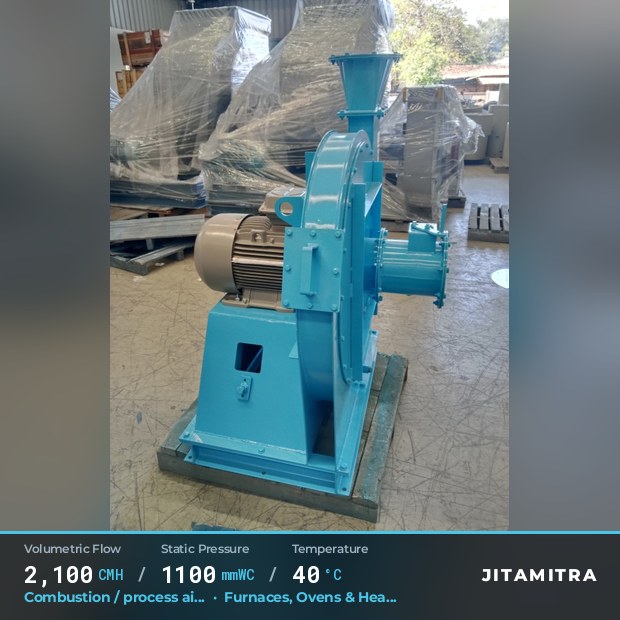

Jitamitra Large-Backward — real dispatched build
2,100CMH/1,100mmWC/40°C
Combustion / process air blower · Furnaces, Ovens & Heat Treatment

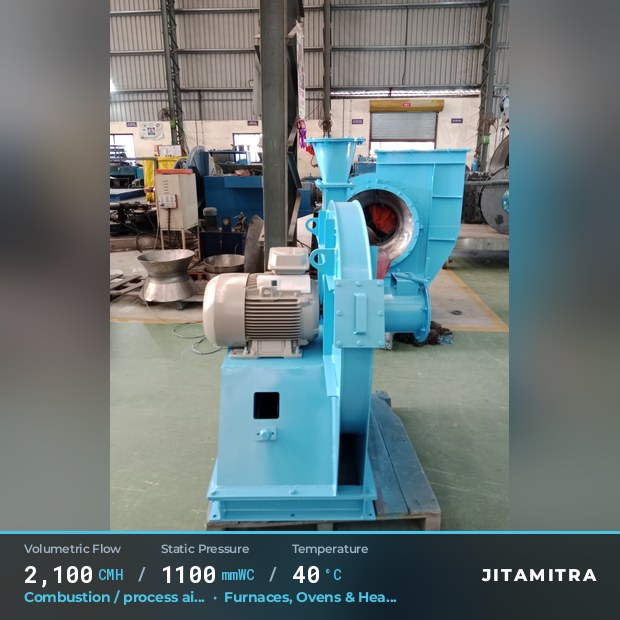

Jitamitra Large-Backward — real dispatched build
2,100CMH/1,100mmWC/40°C
Combustion / process air blower · Furnaces, Ovens & Heat Treatment

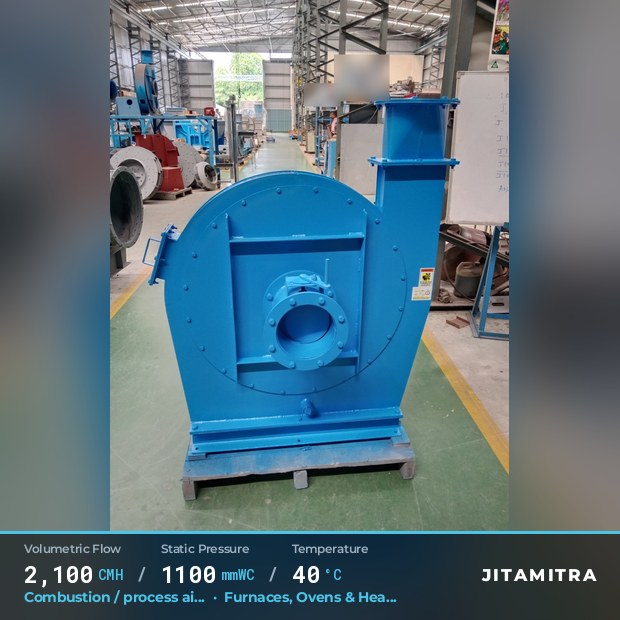

Jitamitra Large-Backward — real dispatched build
2,100CMH/1,100mmWC/40°C
Combustion / process air blower · Furnaces, Ovens & Heat Treatment

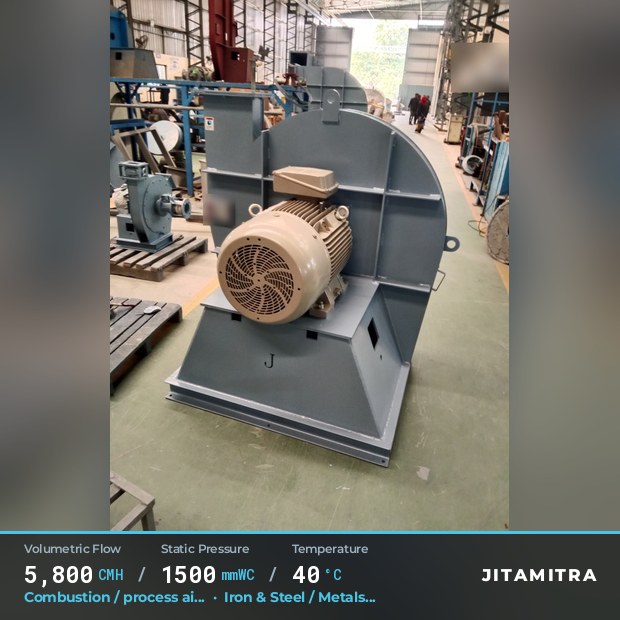

Jitamitra Large-Backward — real dispatched build
5,800CMH/1,500mmWC/40°C
Combustion / process air blower · Iron & Steel / Metals

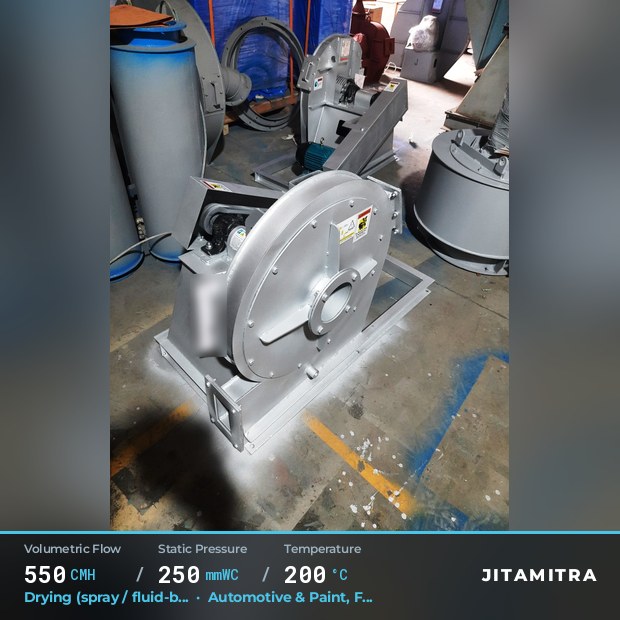

Jitamitra Large-Backward — real dispatched build
550CMH/250mmWC/200°C
Drying (spray / fluid-bed / flash) · Automotive & Paint

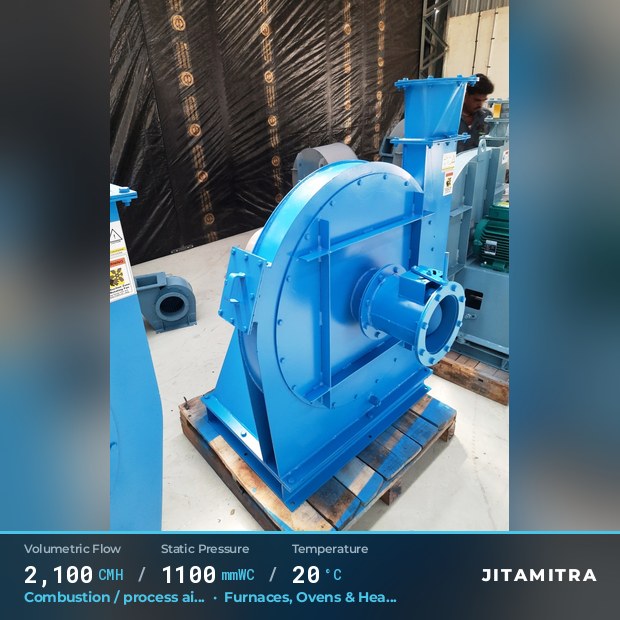

Jitamitra Large-Backward — real dispatched build
2,100CMH/1,100mmWC/20°C
Combustion / process air blower · Furnaces, Ovens & Heat Treatment

Duty points are the customer's design conditions, verified from our manufacturing records (GA drawings / M.O. sheets). Customer names and identifying marks are withheld.

Seen a fan like yours? Tell us your duty point.

Give us the flow, static pressure, gas and temperature — our engineers size it and quote in 3 to 5 working days.*
