Radial fans we have built

Open radial wheels for material-bearing air and high pressure at modest flow. Every card is a real dispatched build, with its verified duty point.

Get a quote

Read how the radial family is engineered · See the whole gallery

Flow on this page runs from 300 to 14,000 CMH, against static pressure to 1,800 mmWC, at gas temperatures to 100 °C. The wheels here are radial. How we choose for this duty: choosing the wheel.

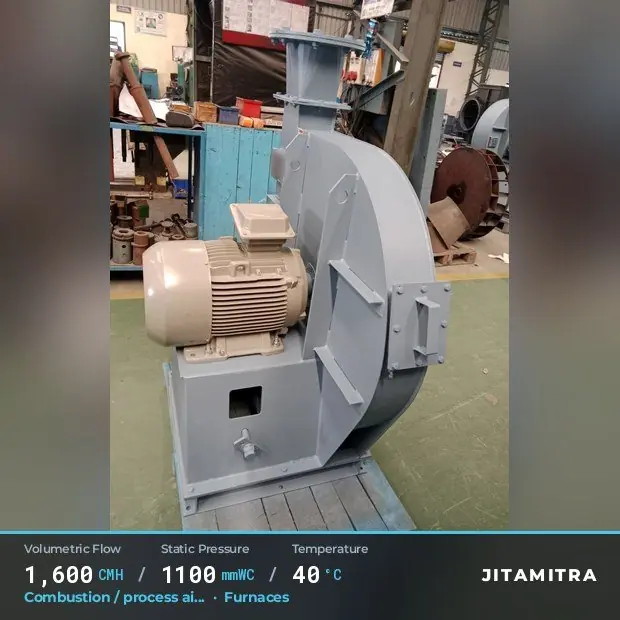

Radial fan built by Jitamitra for combustion and process air, 1,600 CMH at 1,100 mmWC and 40 °C — 1,600CMH/1,100mmWC/40°C
Combustion / process air blower · Furnaces, Ovens & Heat Treatment

Radial fan built by Jitamitra for spray and fluid-bed drying in pharmaceutical plants, 12,000 CMH at 1,700 mmWC and 70 °C — 12,000CMH/1,700mmWC/70°C
Drying (spray / fluid-bed / flash) · Pharmaceuticals

Radial fan built by Jitamitra for combustion and process air, 1,400 CMH at 850 mmWC and 40 °C — 1,400CMH/850mmWC/40°C
Combustion / process air blower · Furnaces, Ovens & Heat Treatment

Radial fan built by Jitamitra for pneumatic conveying in cement and lime plants, 2,500 CMH at 250 mmWC and 40 °C — 2,500CMH/250mmWC/40°C
Pneumatic conveying (dilute) · Cement & Lime

Radial fan built by Jitamitra for pneumatic conveying in steel and metals plants, 930 CMH at 700 mmWC and 56 °C — 930CMH/700mmWC/56°C
Pneumatic conveying (dilute) · Iron & Steel / Metals

Radial fan built by Jitamitra for combustion and process air, 300 CMH at 800 mmWC and 40 °C — 300CMH/800mmWC/40°C
Combustion / process air blower · Furnaces, Ovens & Heat Treatment

Radial fan built by Jitamitra for pneumatic conveying in chemical and petrochemical plants, 3,000 CMH at 350 mmWC and 50 °C — 3,000CMH/350mmWC/50°C
Pneumatic conveying (dilute) · Chemicals & Petrochemicals

Radial fan built by Jitamitra for combustion and process air in sugar mills and distilleries, 900 CMH at 500 mmWC and 100 °C — 900CMH/500mmWC/100°C
Combustion / process air blower · Sugar & Distilleries

Radial fan built by Jitamitra for dust extraction in pollution control OEMs, 14,000 CMH at 325 mmWC and 45 °C — 14,000CMH/325mmWC/45°C
Dust extraction (dirty side) · Pollution Control / APC OEM

Radial fan built by Jitamitra for pneumatic conveying, 2,040 CMH at 300 mmWC and 65 °C — 2,040CMH/300mmWC/65°C
Pneumatic conveying (dilute)

Radial fan built by Jitamitra for combustion and process air, 300 CMH at 100 mmWC and 40 °C — 300CMH/100mmWC/40°C
Combustion / process air blower · Furnaces, Ovens & Heat Treatment

Radial fan built by Jitamitra for dust extraction in pollution control OEMs, 3,000 CMH at 420 mmWC and 40 °C — 3,000CMH/420mmWC/40°C
Dust extraction (dirty side) · Pollution Control / APC OEM

Radial fan built by Jitamitra for bag-filter draught in pollution control OEMs, 3,500 CMH at 950 mmWC and 50 °C — 3,500CMH/950mmWC/50°C
Bag-filter / pulse-jet draught · Pollution Control / APC OEM

Radial fan built by Jitamitra for kiln and furnace exhaust in steel and metals plants, 1,400 CMH at 840 mmWC and 40 °C — 1,400CMH/840mmWC/40°C
Kiln / furnace exhaust · Iron & Steel / Metals

Radial fan built by Jitamitra for dust extraction in foundries and casting, 8,000 CMH at 140 mmWC and 40 °C — 8,000CMH/140mmWC/40°C
Dust extraction (dirty side) · Foundry & Casting

Radial fan built by Jitamitra for ATEX paint-booth exhaust in pharmaceutical plants, 2,000 CMH at 1,700 mmWC and 20 °C — 2,000CMH/1,700mmWC/20°C
ATEX / paint-booth exhaust · Pharmaceuticals

Radial fan built by Jitamitra for dust extraction in steel and metals plants, 950 CMH at 870 mmWC and 40 °C — 950CMH/870mmWC/40°C
Dust extraction (dirty side) · Iron & Steel / Metals

Radial fan built by Jitamitra for weld and furnace fume extraction, 8,350 CMH at 250 mmWC and 40 °C — 8,350CMH/250mmWC/40°C
Fume extraction (weld/grind/EAF) · Iron & Steel / Metals

Radial fan built by Jitamitra for weld and furnace fume extraction, 11,400 CMH at 1,110 mmWC and 40 °C — 11,400CMH/1,110mmWC/40°C
Fume extraction (weld/grind/EAF) · Iron & Steel / Metals

Radial fan built by Jitamitra for dust extraction in pharmaceutical plants, 10,000 CMH at 1,800 mmWC and 70 °C — 10,000CMH/1,800mmWC/70°C
Dust extraction (dirty side) · Pharmaceuticals

Radial fan built by Jitamitra for forced draught in thermal power plants, 500 CMH at 508 mmWC and 30 °C — 500CMH/508mmWC/30°C
Forced Draft (FD) · Thermal Power

Radial fan built by Jitamitra for pneumatic conveying in food and beverage plants, 1,000 CMH at 300 mmWC and 40 °C — 1,000CMH/300mmWC/40°C
Pneumatic conveying (dilute) · Food & Beverage

Radial fan built by Jitamitra for pneumatic conveying in food and beverage plants, 1,500 CMH at 300 mmWC and 40 °C — 1,500CMH/300mmWC/40°C
Pneumatic conveying (dilute) · Food & Beverage

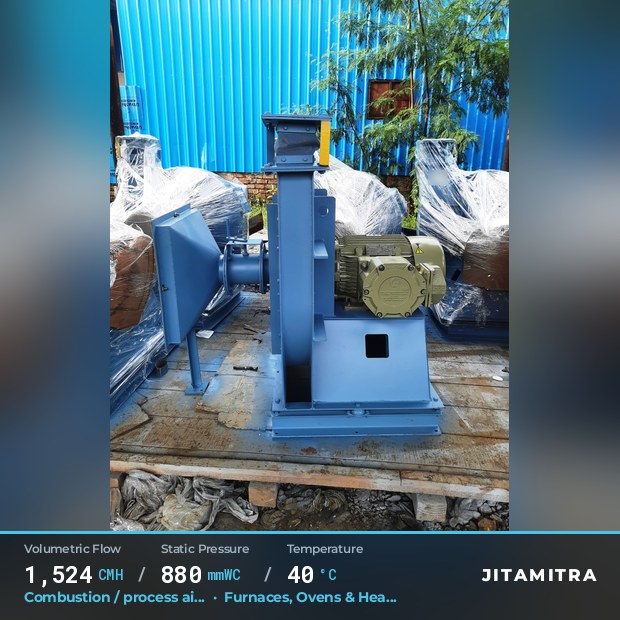

Radial fan built by Jitamitra for combustion and process air, 1,524 CMH at 880 mmWC and 40 °C — 1,524CMH/880mmWC/40°C
Combustion / process air blower · Furnaces, Ovens & Heat Treatment

Radial fan built by Jitamitra for ATEX paint-booth exhaust in oil and gas, 9,000 CMH at 90 mmWC — 9,000CMH/90mmWC/0°C
ATEX / paint-booth exhaust · Oil & Gas

Radial fan built by Jitamitra for dust extraction in foundries and casting, 7,500 CMH at 150 mmWC and 45 °C — 7,500CMH/150mmWC/45°C
Dust extraction (dirty side) · Foundry & Casting

Radial fan built by Jitamitra for spray and fluid-bed drying in pharmaceutical plants, 4,500 CMH at 1,400 mmWC and 70 °C — 4,500CMH/1,400mmWC/70°C
Drying (spray / fluid-bed / flash) · Pharmaceuticals

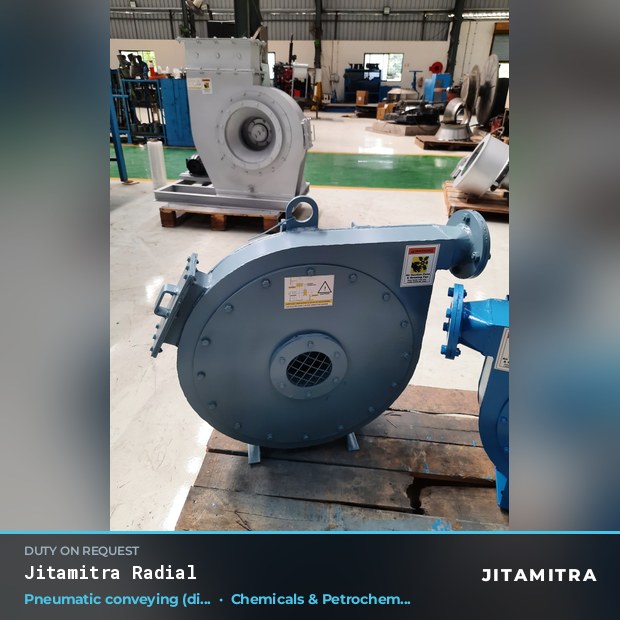

Radial fan built by Jitamitra for pneumatic conveying in chemical and petrochemical plants — Duty on request
Pneumatic conveying (dilute) · Chemicals & Petrochemicals

Radial fan built by Jitamitra for pneumatic conveying in chemical and petrochemical plants, 650 CMH at 210 mmWC and 80 °C — 650CMH/210mmWC/80°C
Pneumatic conveying (dilute) · Chemicals & Petrochemicals

Radial fan built by Jitamitra for combustion and process air, 2,280 CMH at 306 mmWC and 40 °C — 2,280CMH/306mmWC/40°C
Combustion / process air blower · Chemicals & Petrochemicals

Radial fan built by Jitamitra for combustion and process air in furnaces, ovens and heat treatment — Duty on request
Combustion / process air blower · Furnaces, Ovens & Heat Treatment

Radial fan built by Jitamitra for combustion and process air, 2,157 CMH at 1,200 mmWC and 20 °C — 2,157CMH/1,200mmWC/20°C
Combustion / process air blower · Furnaces, Ovens & Heat Treatment

Radial fan built by Jitamitra for weld and furnace fume extraction in automotive paint shops, 8,000 CMH at 140 mmWC and 40 °C — 8,000CMH/140mmWC/40°C
Fume extraction (weld/grind/EAF) · Automotive & Paint

Radial fan built by Jitamitra for combustion and process air, 1,000 CMH at 1,000 mmWC and 20 °C — 1,000CMH/1,000mmWC/20°C
Combustion / process air blower · Furnaces, Ovens & Heat Treatment

Radial fan built by Jitamitra for kiln and furnace exhaust in foundries and casting, 1,400 CMH at 840 mmWC and 40 °C — 1,400CMH/840mmWC/40°C
Kiln / furnace exhaust · Foundry & Casting

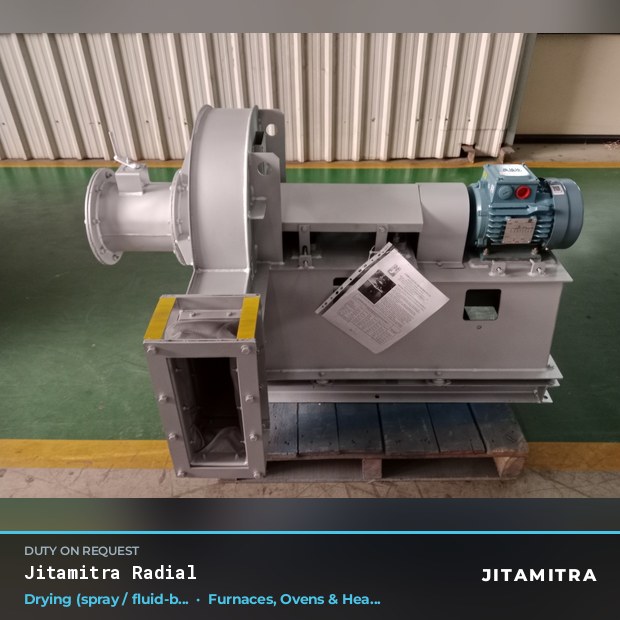

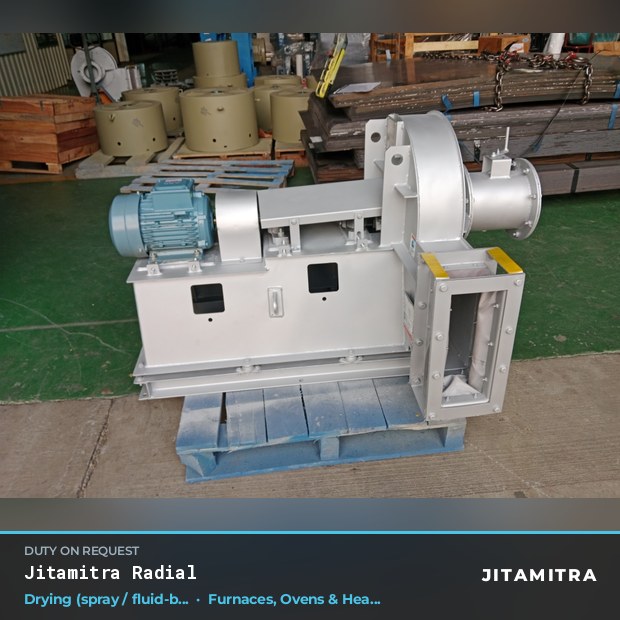

Radial fan built by Jitamitra for spray and fluid-bed drying in furnaces, ovens and heat treatment — Duty on request
Drying (spray / fluid-bed / flash) · Furnaces, Ovens & Heat Treatment

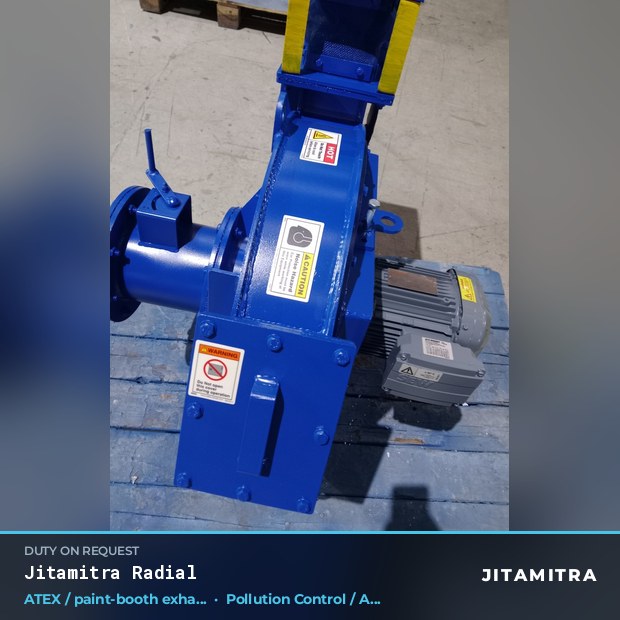

Radial fan built by Jitamitra for ATEX paint-booth exhaust in pollution control OEMs — Duty on request
ATEX / paint-booth exhaust · Pollution Control / APC OEM

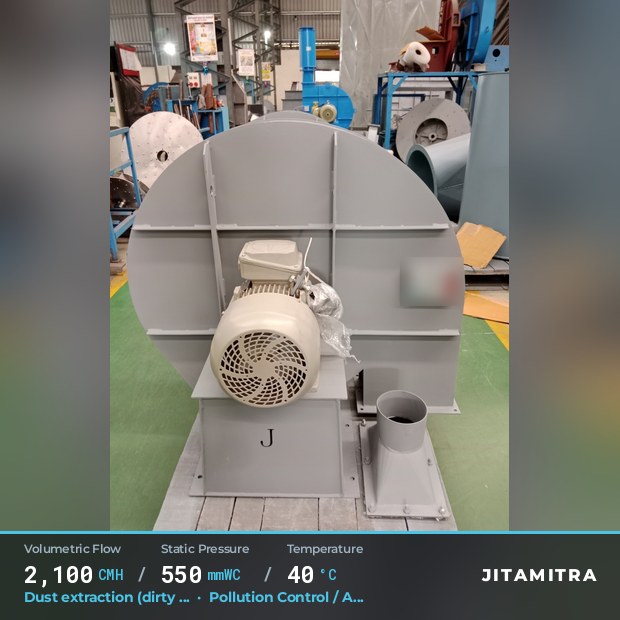

Radial fan built by Jitamitra for dust extraction in pollution control OEMs, 2,100 CMH at 550 mmWC and 40 °C — 2,100CMH/550mmWC/40°C
Dust extraction (dirty side) · Pollution Control / APC OEM

Duty points are the customer's design conditions, verified from our manufacturing records (GA drawings / M.O. sheets). Customer names and identifying marks are withheld.

Seen a fan like yours? Tell us your duty point.

Give us the flow, static pressure, gas and temperature — our engineers size it and quote in 3 to 5 working days.^*
